By analyzing the audio gathered by its microphones, AVO is able to track the score and the exact position that the ball hits the table, and that data is provided to the players in an intuitive and fun way through sound and visual feedback.




CONCEPT VIDEO



KEY FEATURES

Sound radar

Microphones and accelerometer in console and paddles can capture the data related to position, speed and spin. These data can be used for score counting and performance analyzing, for example. It's also the basic data for further developing of new game modes.



Audio interface

Sounds are different from the paddle hitting the table with its rubber side and its wooden edge, using them as different input, thus creating an audio UI that is intuitive to players.



New game modes

More than the usual competition against players, AVO offers them the possibility of collaborating with each other to reach common goals or embody characters, transforming the paddles in fictitious weapons through the use of sound.



HOW IT WORKS

Components of the console

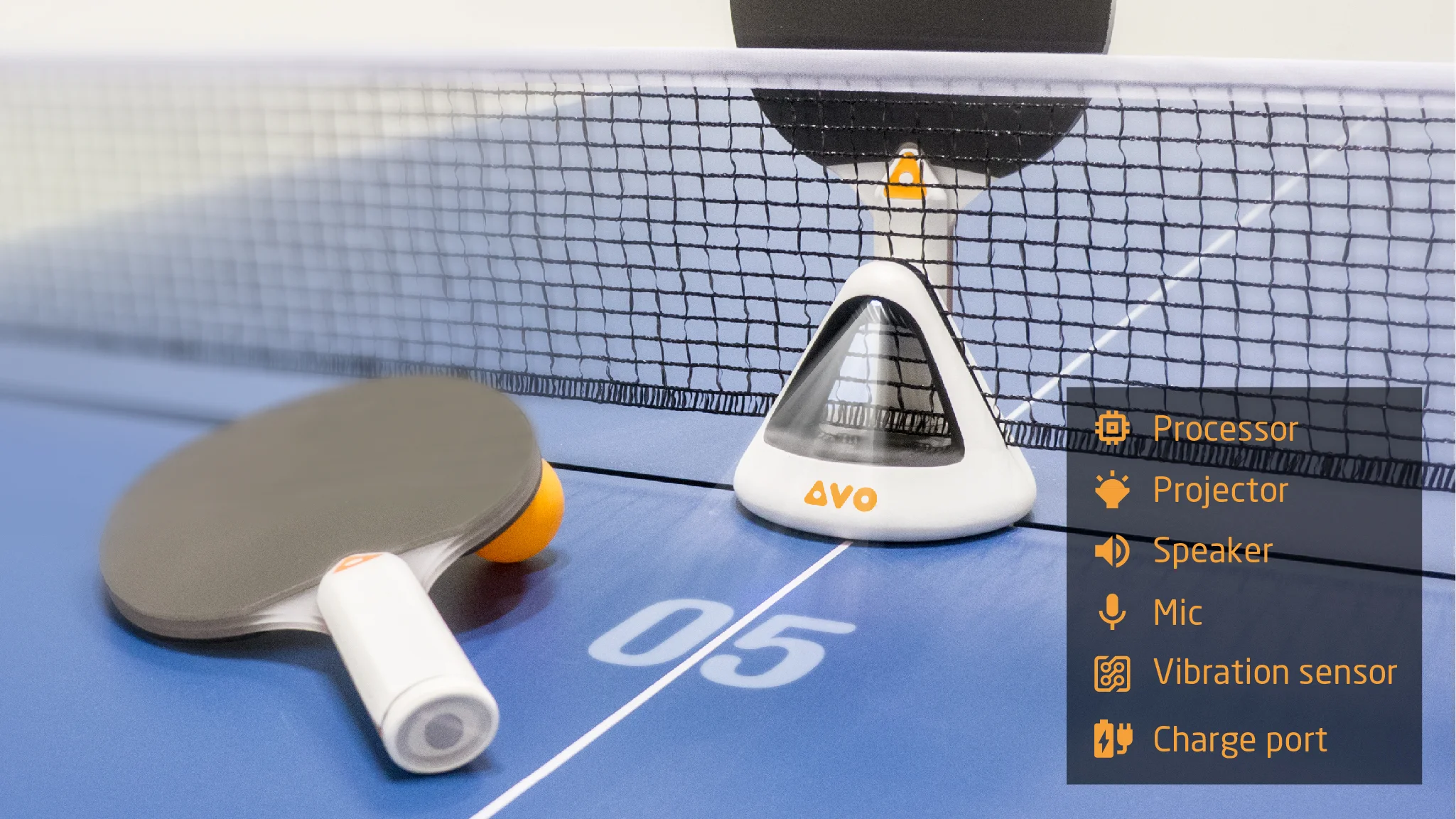

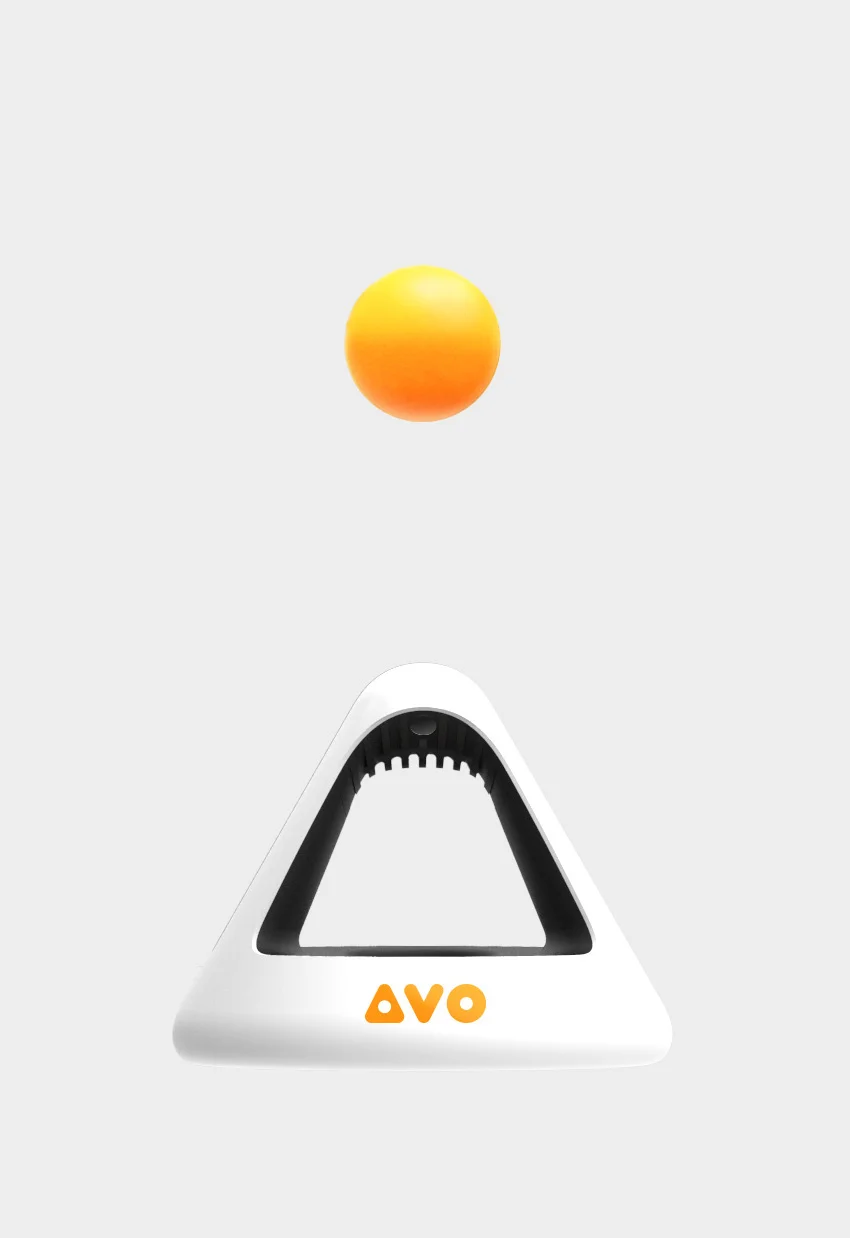

As the brain of AVO, console do all the computing works. It uses microphones and vibration sensors to collect data from ball and net, and the speaker and projector to provide audio and visual feedback.

Components of paddles

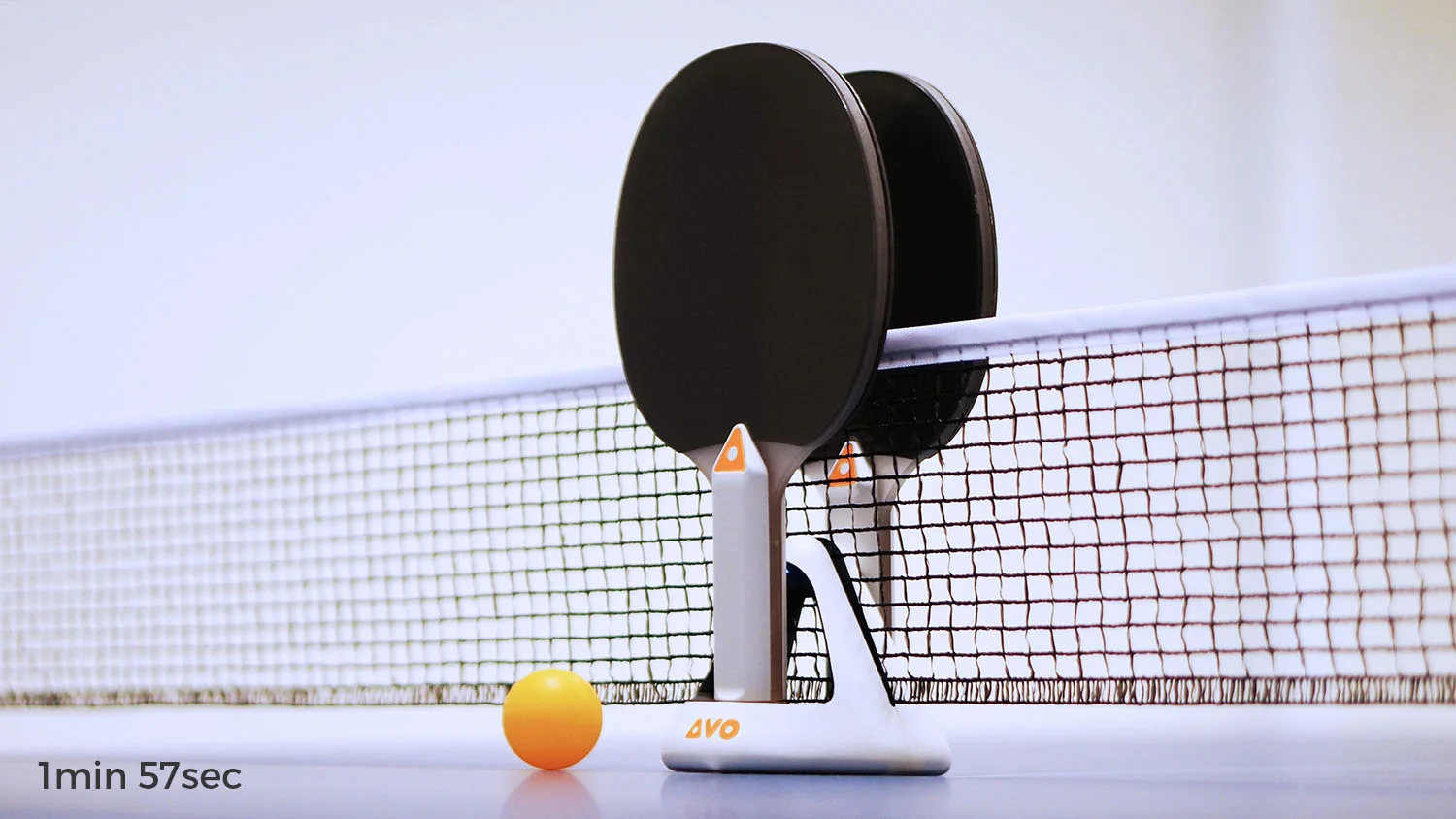

Paddles use microphone and accelerometer to track speed, angle and the time of strokes. The speaker in the paddle can give players more realistic feeling, just like the paddle really become a fictitious weapon.

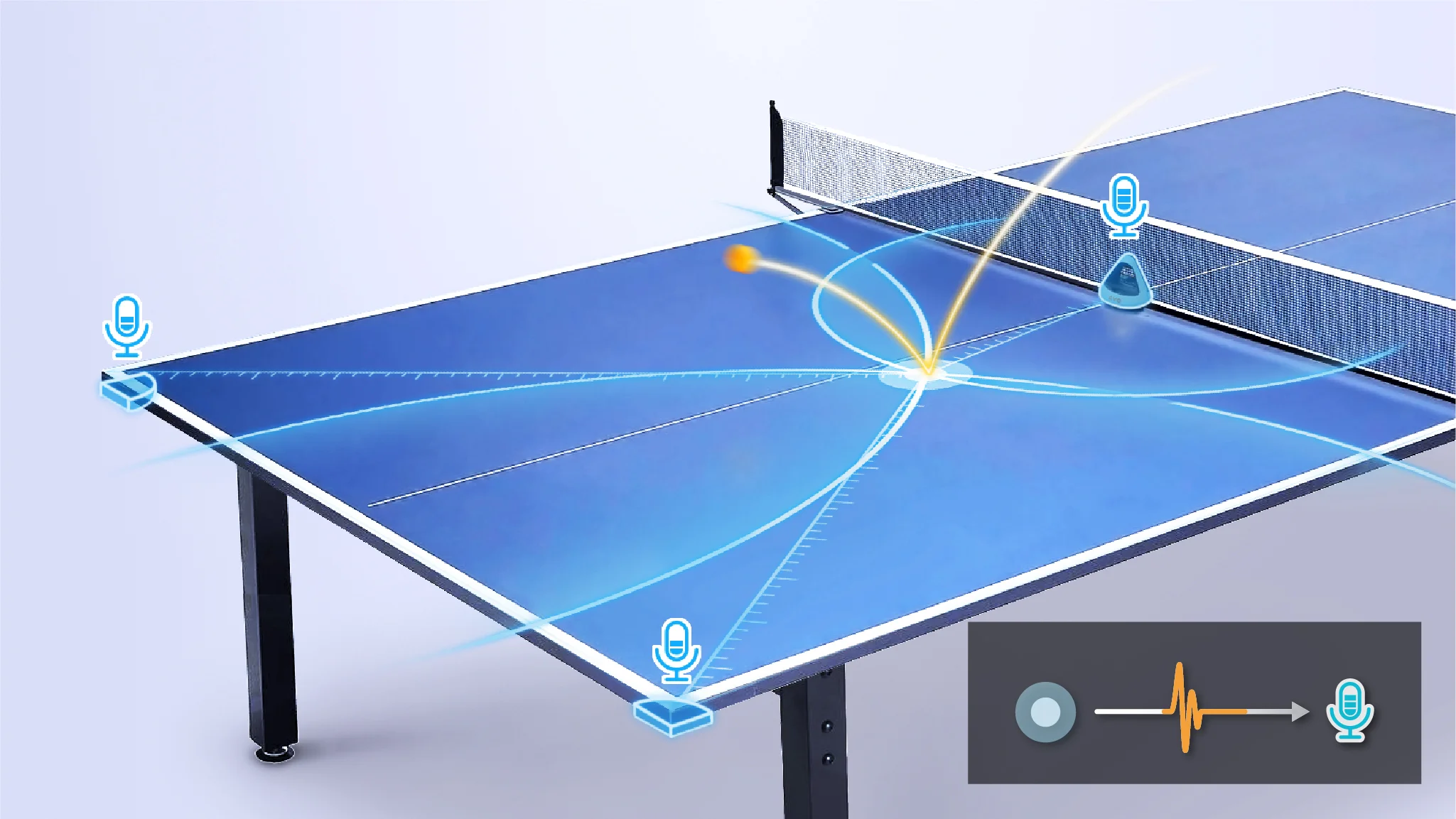

When 3 microphones detect the same frequency spectrum of sound simultaneously, the position of bouncing point can be deduced by comparing the volume.

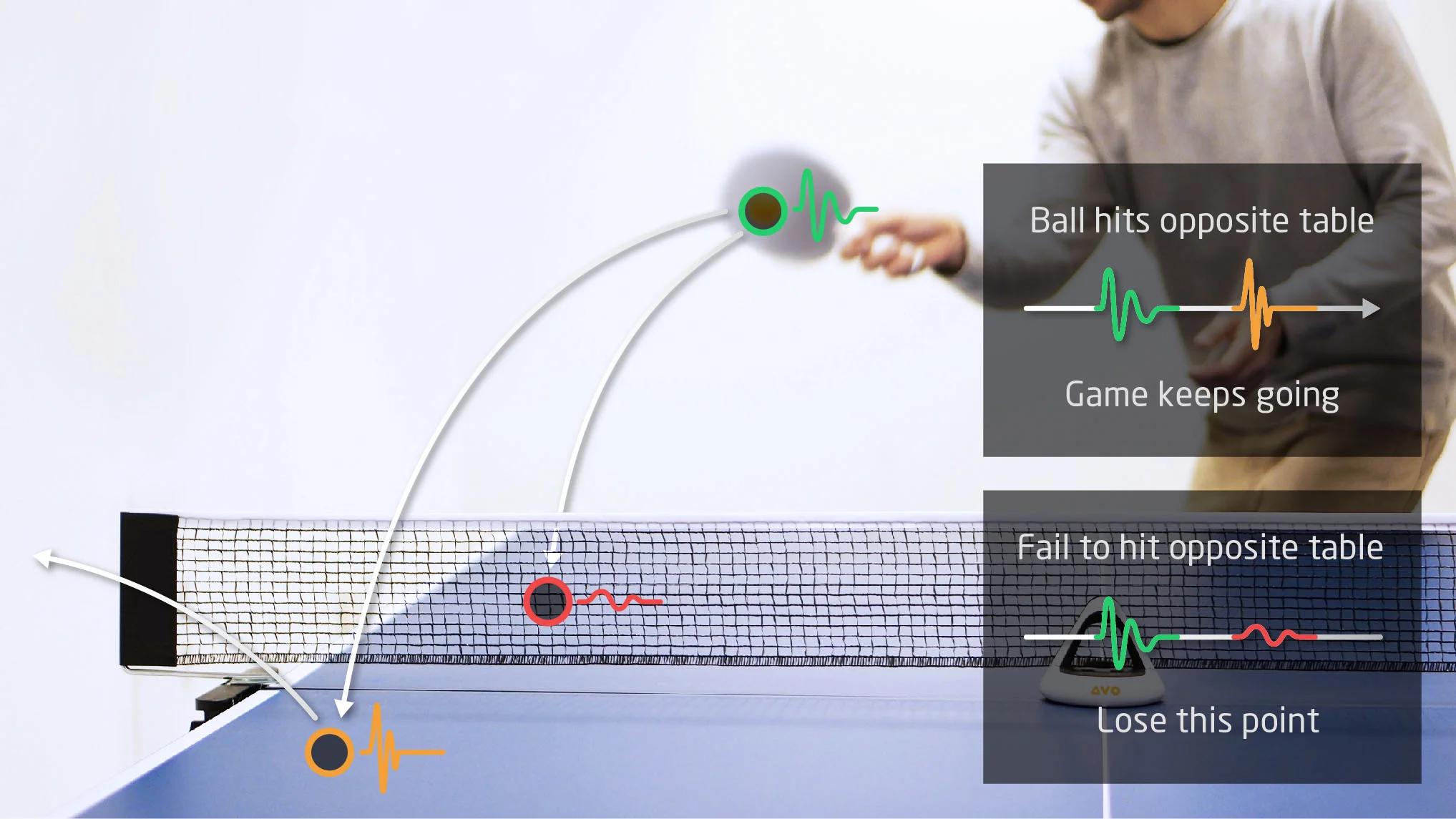

Distinguishing between the sounds of the ball hitting and bouncing by their audio spectrums.





Design Process

It was an intensive project. The main challenge for me was to organize the schedule and arrange tasks, making sure we can present results on time and also keeping it high quality at the same time.



IDEA SKETCHING

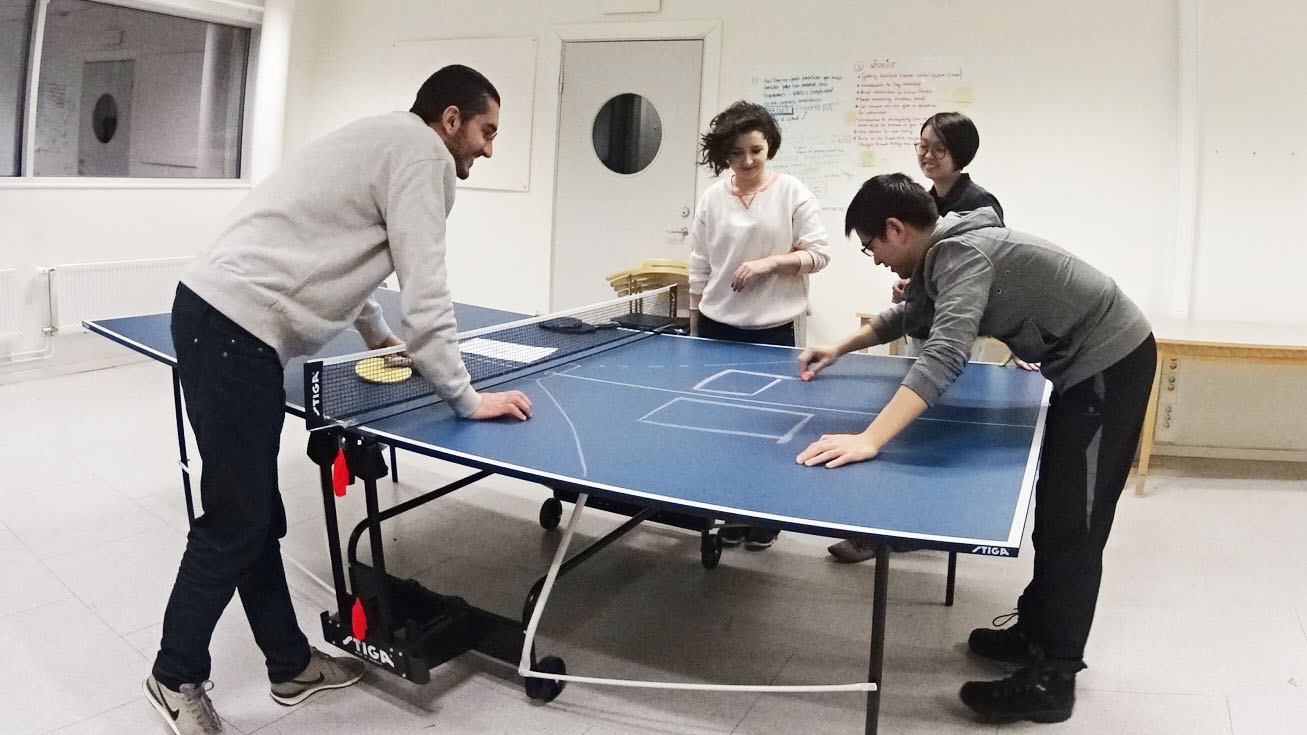

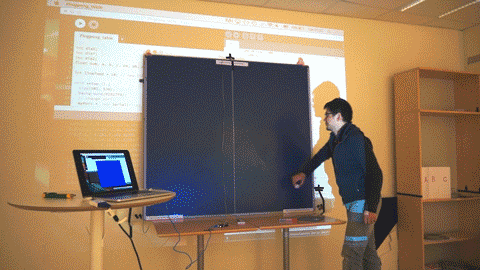

After deciding the concept of ping-pong, we tried to sketch it out on the ping-pong table, and then projecting the image on the table for adjusting the color and size of graphics.



PROOF OF CONCEPT

We recorded the sound of bouncing and hitting the ball. The audio spectrum presents clearly difference between their shape, thus proving that the idea is feasible.



PROTOTYPING

PROTOTYPE OF THE PADDLE

The prototype was modified from a Wii controller as it has gyro and accelerometers. Different sounds were generated by processing, according to speed of strokes.

The prototype was modified from a Wii controller as it has gyro and accelerometers. Different sounds were generated by processing, according to speed of strokes.

The video shows how the paddle works as a laser gun!~



PROTOTYPE OF THE "SOUND RADAR"

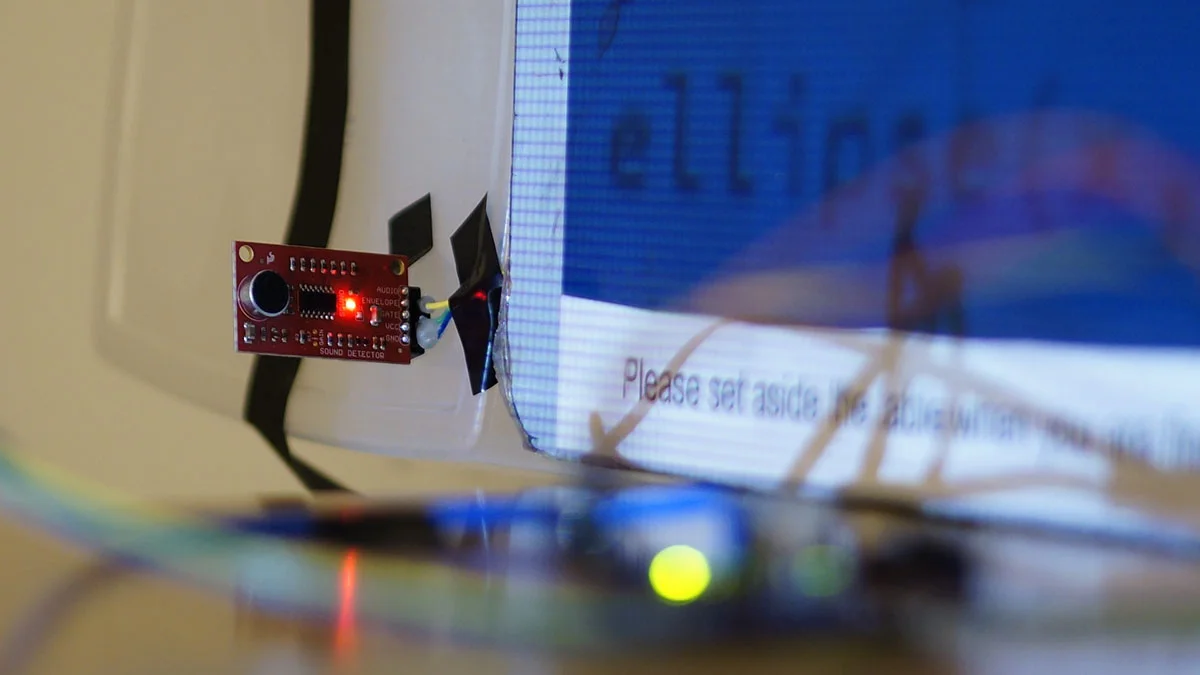

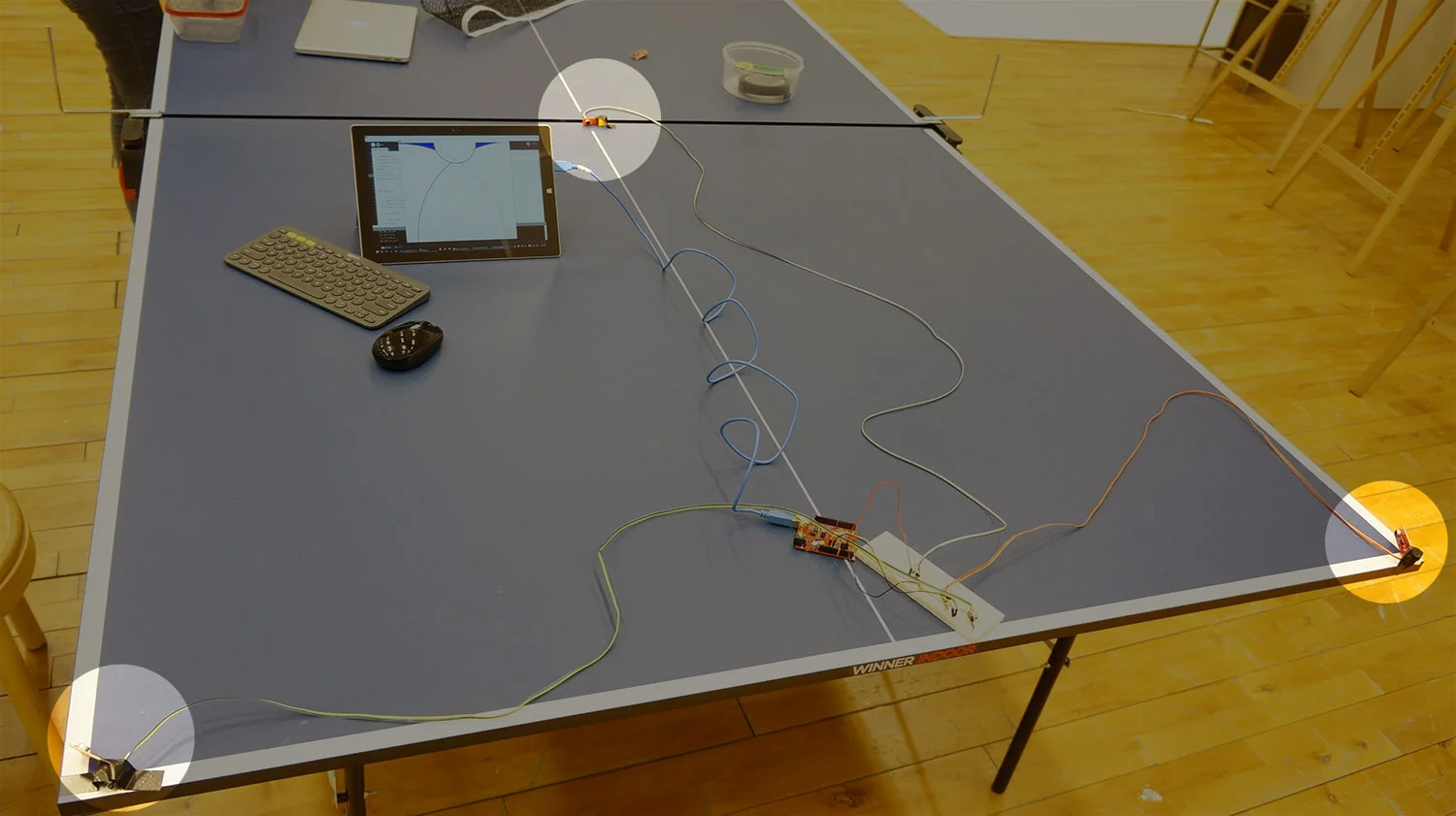

We thought, through adjusting the algorithm and parameters of volume-distance transition, It's feasible to measure the position of the bouncing point, and to test it we built this prototype of sound radar, which includes 3 microphones at the corners of the table, measuring sound levels, and using processing to translate data into graphics.

We thought, through adjusting the algorithm and parameters of volume-distance transition, It's feasible to measure the position of the bouncing point, and to test it we built this prototype of sound radar, which includes 3 microphones at the corners of the table, measuring sound levels, and using processing to translate data into graphics.



TESTING

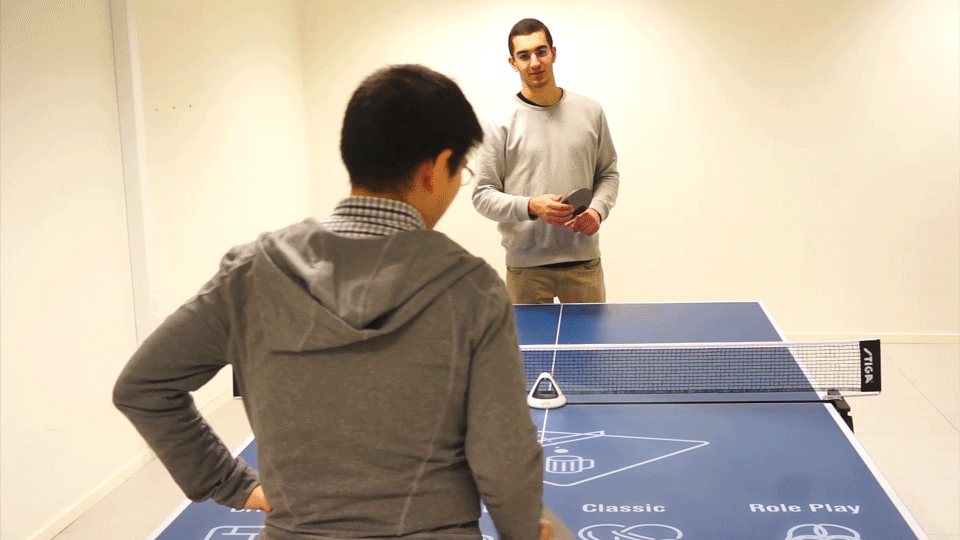

We set up the prototype for observing how users react to the image on the table and sounds generated by their strokes. We were surprised to see that they showed high tolerance to the delay of sound effects and animation, and that they enjoied to explore how different sounds react to their stroke. Another valuable point is that we found some users tried to control the interface by paddle. Based on it, we developed the audio input interface.



ANIMATION

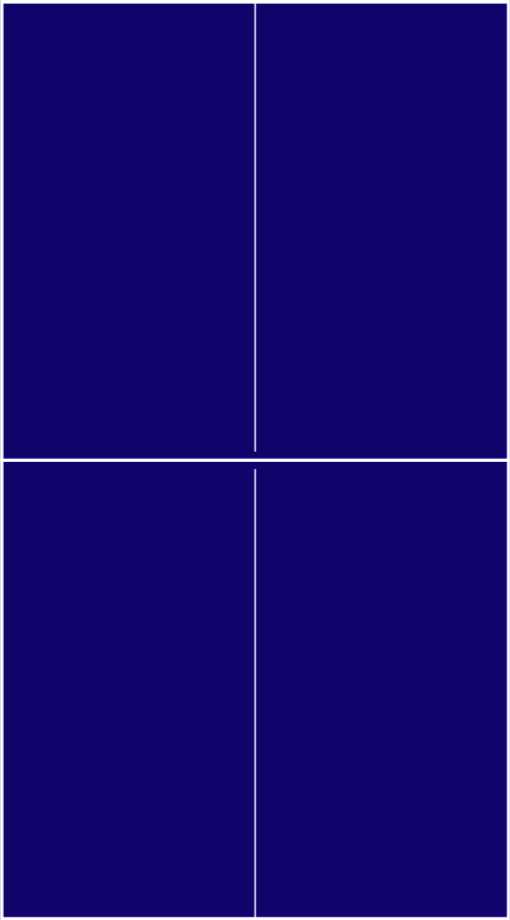

We use this monocolor and bold line stroking style based on limitations of the ping-pong table and projector.





VISUAL LANGUAGE



We chose the orange triangle with rounded corners as the main element to present the concept of making ping-pong more fun and easy. Through implementing it in brand, product and animation, we created a clear and unified image of AVO.
